USB 2.0 uEye SE Standard Cameras

Behind uEye is a family of affordable and extremely compact Machine vision cameras with USB 2.0 interface for professional use in automation, quality assurance, security technology and non-industrial applications. By using the widespread USB technology our cameras can easily be connected to a wide range of systems.

uEye cameras come equipped with a line of high-quality CCD and CMOS sensors. Our wide range of products extends from several models with VGA or Wide-VGA resolutions and a maximum of 100 full size images per second to high-resolution mega pixels cameras.

Included in delivery is the complete uEye software package: The comfortable, easy to use uEye SDK Standard drivers like Direct Show (WDM), Active X and TWAIN Interfaces for popular machine vision software The extensive uEye Demo and other specific demo-programs, which are all provided also in source code. Almost all these models are available with colour or monochrome sensors at the same price.

A table of all available uEye standard models can be found in uEye SE model (hyperlink)




USB 2.0 uEye RE Cameras - IP65/67 Compliant

The uEye RE have similar models to the standard uEye family of affordable and extremely compact cameras with USB 2.0 interface for professional use.

Additionally the RE models are extraordinarily robust and suitable for an extended range of applications. In connection with the lens tubes, they meet the protection classes IP65 and IP67. The USB connection and the I/O signal connection are made through two plugs that meet the same protection classes. The uEye RE range is therefore particularly well suited to Rough Environments. All uEye models are also available as uEye RE versions.

A table of all available uEye RE models can be found in uEye RE model (hyperlink)



USB 2.0 uEye ML Industrial Cameras

The USB uEye ML is a line of CMOS cameras thats similar to LE model but with a metal housing with external I/O port.

The USB uEye ML camera series is a reasonably-priced and compact industrial camera with USB 2.0 interface and next generation CMOS sensor technology. Its small dimensions make the camera ideal for applications with space restrictions. Thanks to its robust metal housing and lockable connectors, the USB uEye ML can also be used in harsh industrial environments. The 8-pin Hirose connector highlights the versatility of the camera by providing two general purpose I/Os as well as optically decoupled trigger inputs and flash outputs.

A table of all available uEye ML models can be found in uEye ML model (hyperlink)



USB 2.0 uEye LE Cameras

The uEyeLE stands for a family of extremely compact cameras for professional use in visualisation and image processing. Through the use of the widespread USB technology the cameras can be interfaced with a vast variety of systems without problems.

uEyeLE cameras feature a range of high-performance CMOS sensors. The product range includes several models with WideVGA resolution and a maximum of 100 full frames per second, as well as a high-resolution 5-megapixel camera.

The uEyeLE series comes in different variants with or without housing. The CS-mount lens adapter of the housing model allows the use of compact, low-cost lenses. With the optional distance adapter you can also use C-mount lenses. The boardlevel variants of the cameras provide S-mount lens adapters for M12/M14 screw-mounted lenses, which achieve a slimmer profile. The LE models can also be used as the basis for special project-related designs.

A table of all available uEye LE models can be found in uEye LE model (hyperlink)



USB 3.0 uEye CP Cameras

The next generation of the successful uEye camera series: Ultra compact, super fast, and thanks to the magnesium housing, lightweight and robust. The lockable USB 3.0 connector further underlines the suitability of the camera for industrial use.

Offering a host of additional features, including LUT, hotpixel correction, gain, hardware gamma, up to 16 bit color depth per pixel, as well as color correction, the USB 3.0 camera produces excellent images – even in harsh environments.

High resolution sensors and a high data rate of 420 MBytes per second make the USB 3 uEye CP camera especially well-suited to use in multi-camera systems and 3D applications. The camera is also the ideal choice for embedded systems, due to its lightweight, compact design and integrated power supply.

The camera series is downward compatible to USB 2.0 to also allow USB 2.0 systems to benefit from the new camera generation.

A table of all available USB 3 uEye CP models can be found in USB3 uEye CP model (hyperlink)



USB 3.0 uEye ML Cameras

Light and also robust: weighing in at only 41 g with a size of 47 x 46 x 28 mm. The USB 3 uEye ML is the perfect camera for all space critical applications. Yet the camera also offers all benefits one would expect from a proper industrial camera. The USB 3 uEye ML is suited for a wide range of applications thanks to 2 GPIOs, opto-decoupled trigger and flash.

Its C/CS lens mount allows for a great selection of lenses, wide-angles lenses included. Camera integration is particularly easy based on Plug & Play and USB one cable solution for data transfer and power supply.

The camera series is downward compatible to USB 2.0 to also allow USB 2.0 systems to benefit from the new camera generation.

A table of all available USB 3 uEye ML models can be found in USB3 uEye ML model (hyperlink)



USB 3.0 uEye LE Cameras

The perfect and cost-effective volume camera: The USB 3 uEye LE is available in a housed version with C/CS lens mount for a great choice of lenses, wide-angled lenses included.

Or alternatively, as the first proper single-board camera USB 3.0 with or without S-Mount lens mount for most cost-effective lenses. Thanks to its minimal size the LE offers easy integration and hence is the perfect component for embedded systems and apparatus engineering. The single-board version also offers excellent connectivity with its 8 pin connector for 5 V power supply, trigger, flash, 2 GPIOs and an I2C bus for triggering external devices. Thanks to the same footprint as the USB 2 uEye LE its easy to upgrade from USB 2.0 to USB 3.0 technology.

The camera series is downward compatible to USB 2.0 to also allow USB 2.0 systems to benefit from the new camera generation.

A table of all available USB 3 uEye LE models can be found in USB3 uEye LE model (hyperlink)



Gigabit Ethernet uEye CP Cameras

Small, but powerful: Measuring just 29 x 29 x 41 mm, the GigE uEye CP industrial camera with Gigabit Ethernet interface boasts the performance of an industrial camera in the smallest of packages.

The ultra compact, robust, yet lightweight magnesium housing has screw-on connectors. The 6-pin Hirose connector for controlling the trigger and flash also help to make the camera suitable for industrial use. As the camera can be operated by Power over Ethernet (PoE), only one cable of up to 100 meters is needed; an additional cable for the power supply is not required. The Hirose connector can also be used as an optional power supply.

Thanks to the unique IDS software, you also experience real USB plug & play, even for Gigabit Ethernet cameras: The cameras are automatically detected in the system and are ready for use immediately.

The camera also features 60 MB of internal image memory to decouple image acquisition from the transmission of the image. This makes the camera especially suitable for applications in multi-camera mode.

A table of all available uEye CP models can be found in GigE uEye CP model (hyperlink)

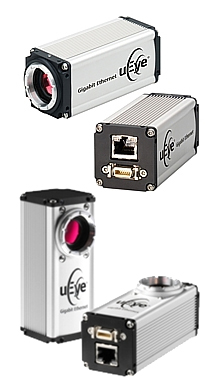

Gigabit Ethernet uEye SE Cameras

The GigE uEye SE is a highly compact line of Gigabit Ethernet cameras.

With a housing barely larger than that of the USB uEye models, the GigE uEye SE offers all the benefits of Gigabit Ethernet technology: high bandwidth of more than 100 MByte/s with cable lengths up to 100 meters. Besides the lockable RJ45 port for GigE, the camera comes with a 6-pin Hirose connector for power, trigger and strobe connections.

A table of all available GigE uEye SE models can be found in GigE uEye SE model (hyperlink)




Gigabit Ethernet uEye RE Cameras - IP65/67 Compliant

The GigE uEye RE is a line of ruggedized cameras compliant with the IP65/IP67 standards.

They’re ideal for applications where the camera is used in dusty and wet environments. GigE uEye RE cameras come with a GigE interface which allows them to be used with cables with lengths up to 100 meters.

A table of all available GigE uEye RE models can be found in GigE uEye RE model (hyperlink)




Gigabit Ethernet uEye LE Cameras

The GigE uEye LE is the most compact board-level industrial camera on the market. As a reasonably-priced entry-level model, the GigE uEye LE offers everything you expect from a powerful camera with a Gigabit Ethernet interface.

The GigE uEye LE is also available with CS mount or S-mount lens holder with M12 thread. Cable lengths of up to 100 meters give the camera maximum flexibility. The power supply also provides flexibility: Power can be supplied either by the two-pin marshaling panel or by the 10-pin connector. The two integrated status LEDs make it easy to see when the camera is ready for operation.

As a Gigabit Ethernet camera, the GigE uEye LE is also suitable for multi-camera operation, thanks to the higher GigE bandwidth. This is also supported by 60 MB of internal image memory to decouple image acquisition from the transmission of the image. The optional "motherboard" version with ZIF plug offers even greater flexibility. A wide range of remote boards with RJ45 ports can be connected via Flex ribbon cables.

The GigE uEye LE industrial cameras are fitted with the successful e2v 1.3 megapixel CMOS sensor (EV76C560) and are available in monochrome, color, and NIR versions, delivering outstanding performance in the near infrared range. The cameras offer a host of sensor features, including line scan mode, log mode, and four freely-selectable shutter modes, making them suitable for a wide range of applications while ensuring outstanding image quality.

A table of all available uEye GigE LE models can be found in GigE uEye LE model (hyperlink)


USB 2.0 uEye XS Auto Focus Camera

The uEye XS is back again! So small, so easy, so ingenious.

It provides the convenient operation of a consumer camera, but also has the versatility of a robust industrial camera: With the new XS, IDS is launching a generation of cameras that combines two worlds.

Numerous automatic functions, normally only found in digital cameras for the consumer market, deliver exceptional user friendliness but also produce an optimum image quality even under difficult lighting and ambient conditions.

Weighing in at just 12 grams and around 23 x 26.5 x 21.5 mm in size, the XS can be integrated very easily into any system. Its magnesium housing makes it totally robust.

The XS is equipped with a 5 Megapixel Aptina CMOS Rolling shutter sensor with a pixel size of 1.4 µm, resulting in exceptionally detailed true color images. At full resolution of 2592 x 1944 pixels, a maximum of 15 frames per second can be captured in JPEG mode. Thanks to a flexible scaler, seven fixed image formats can be selected (5 MP, 3 MP, Full HD, UXGA, 1.2 MP, 720p and VGA).

uEye USB 2.0 XS model can be found in uEye XS model (hyperlink)
