IC Lead Inspection

We have the ability to do most types of vision inspection for Lead packages on your existing equipments without affecting the production throughput.

Our vision solutions will be able to provide a simple GUI (Graphical User Interface) for the Production Operators to select different product files. Start/Stop/Resume functions, with the inspected images (both PASS & FAIL) on the screen.

Optional Supervisory & Administrator level can created for amending of vision system parameters and “teaching” new products mode.

With conveyors systems “On the fly” or “Indexing” mode, detection of Leads defects on a Semiconductor  lC lead package :-

Additional Defects :-
  • Slug Pulling
  • Leads Skew
  • Missing Leads
  • Leads Damage
  • Solder Bridging
  • Lead Pitch Measurement

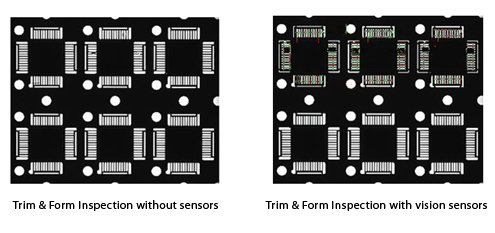

Trim & Form Vision Inspection

  • Up to 6 units per inspection for product LQFP32 using high resolution camera
  • With GUI, able to prompt user which unit failed & low production yield warning
  • 35 microns per pixel resolution using high resolution camera
  • Able to show on screen and save failed unit image
  • Production throughput will not be affected



Zoom Images
